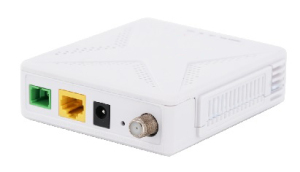

PG-XDGE101CW
|
PON interface |
1XPON port(EPON PX20+ and GPON Class B+) |
||
|
SC single mode, SC/APC connector |
|||
|
TX optical power: 0～+4dBm |
|||
|
RX sensitivity: -27dBm |
|||
|
Overload optical power: -3dBm(EPON) or -8dBm(GPON) |
|||
|
Transmission distance: 20KM |
|||
|
Wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
|||
|
LAN interface |
1*GE Auto-negotiation RJ45 ports |
||
|
CATV interface
|
V2: |
||
|
RF Optical power : +2～-18dBm |
|||
|
Optical receiving wavelength: 1550±10nm |
|||
|
RF frequency range: 47～1000MHz |
|||
|
RF output impedance: 75Ω |
|||
|
RF output level: ≥ 70dBuV(0～-15dBm) |
|||
|
AGC range: 0～-15dBm |
|||
|
MER: ≥32dB(-14dBm optical input) |
|||
|
V3: |
|||
|
•RF Optical power : 0～-3dBm |
|||
|
•Optical receiving wavelength: 1550±10nm |
|||
|
•RF frequency range: 47～1000MHz |
|||
|
•RF output impedance: 75Ω |
|||
|
•RF output level: ≥ 60dBuV（0~-3dBm） |
|||
|
•AGC range: not support |
|||
|
•MER: ≥32dB(0~-3dBm optical input) |
|||
