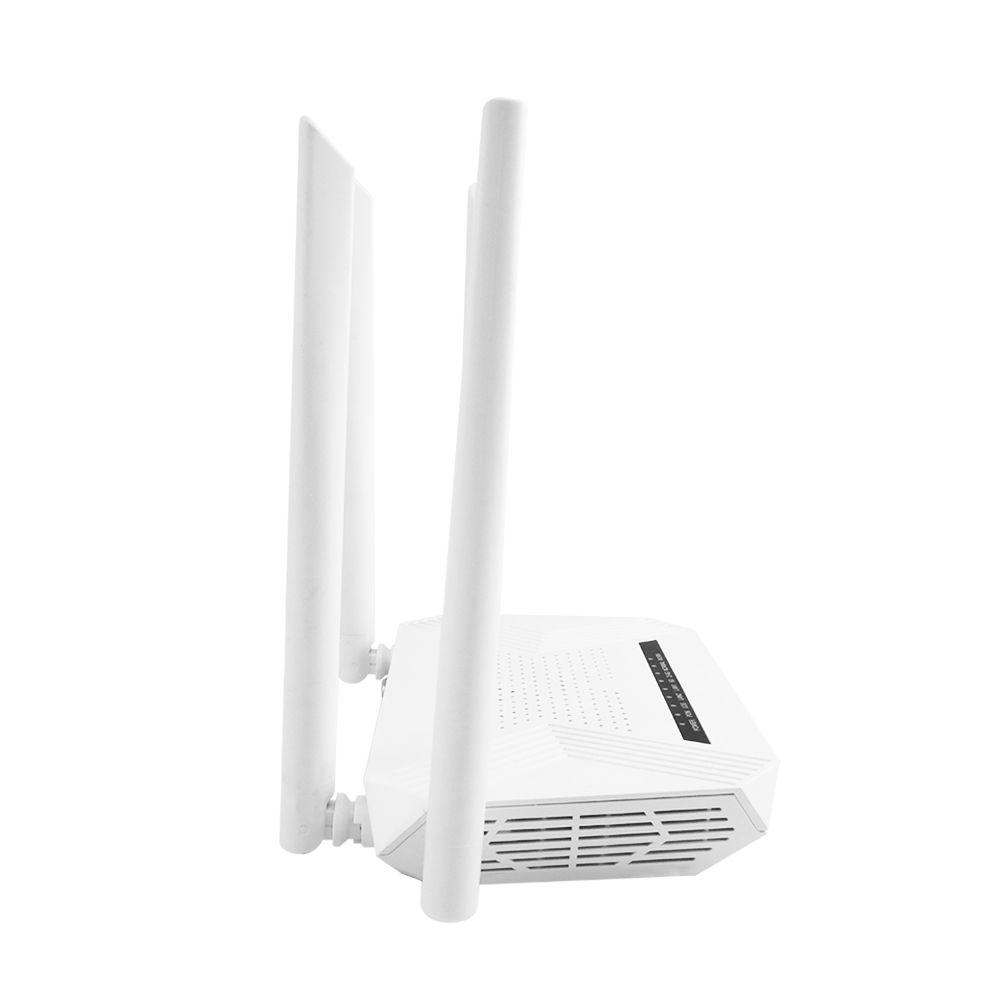

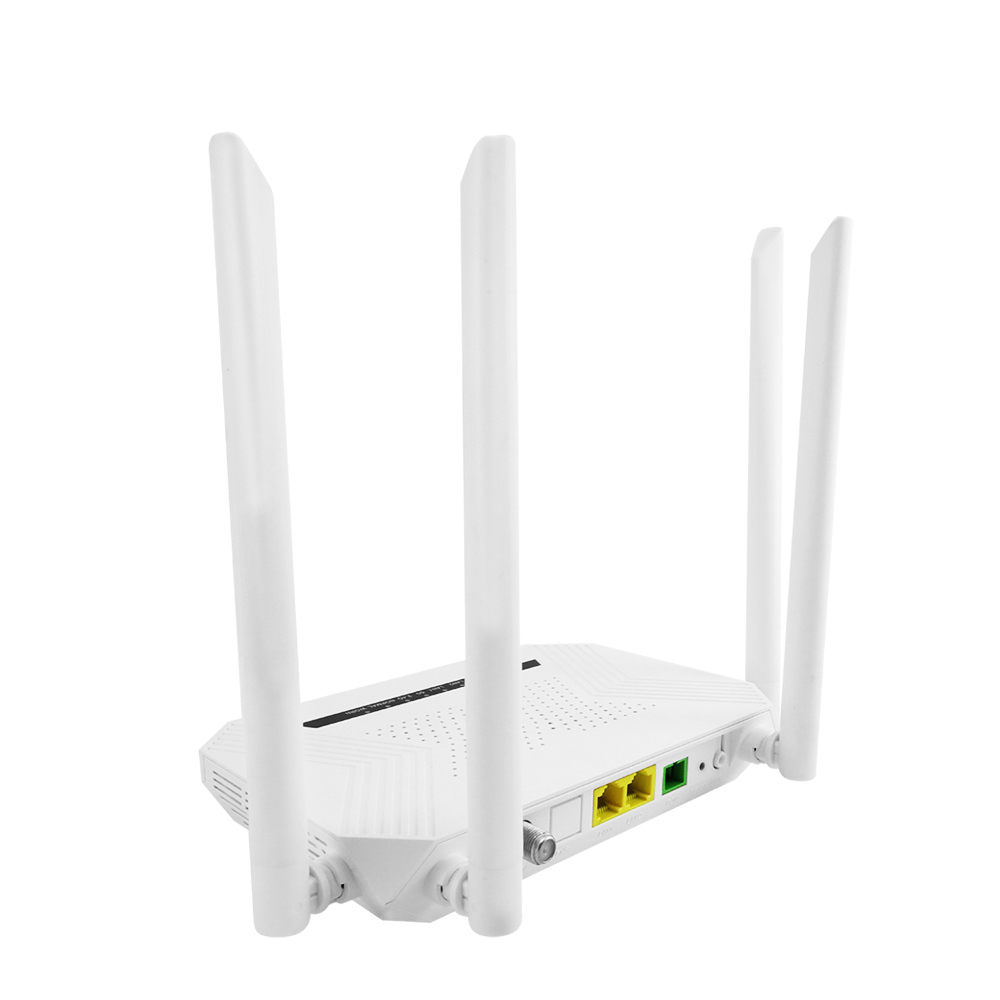

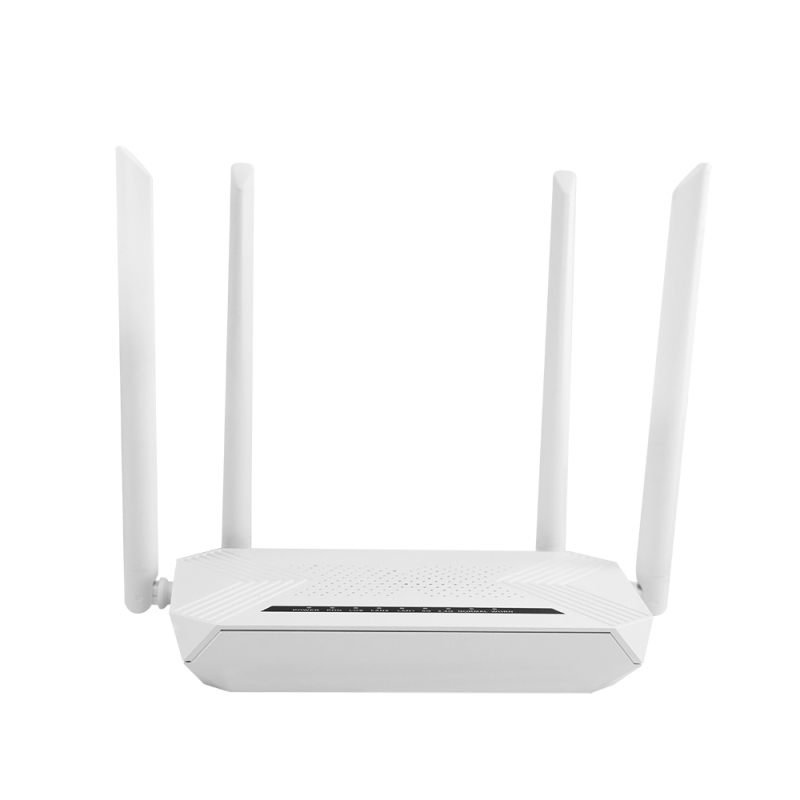

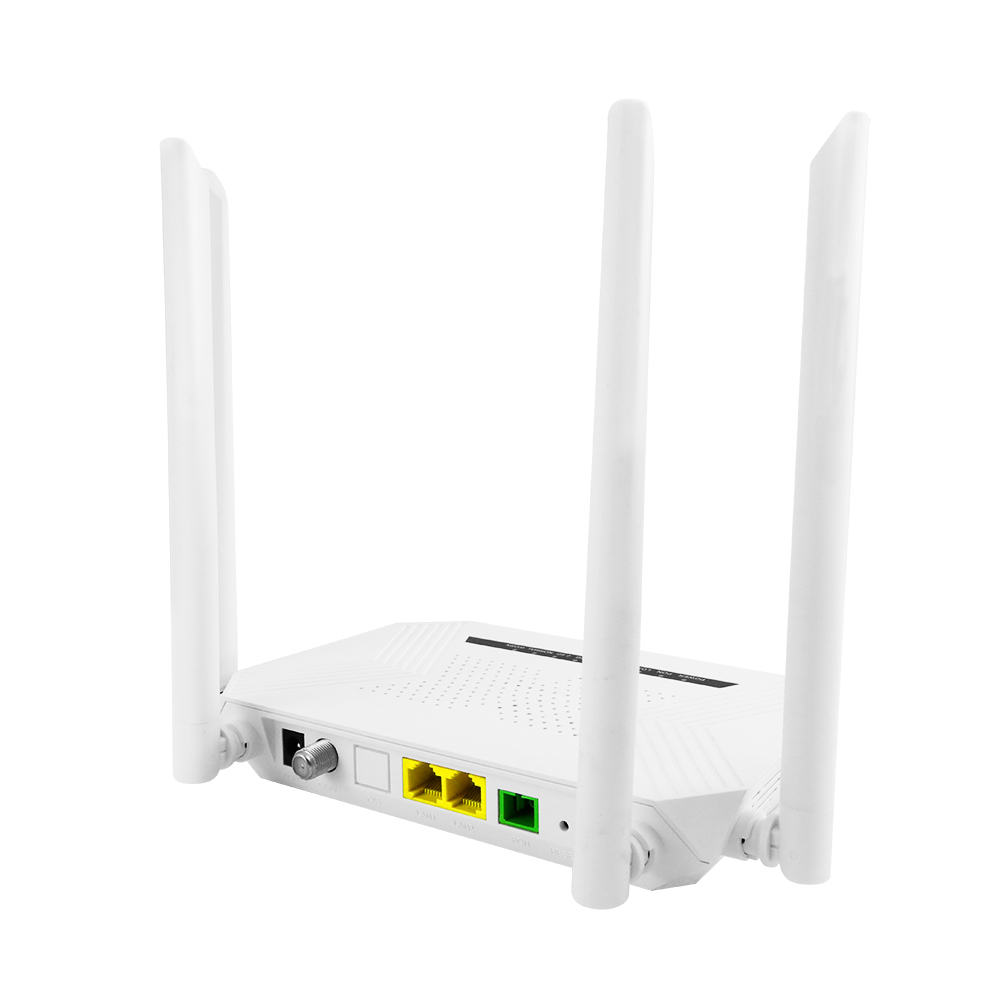

PG-GX6212R2102A EOPN GOPN XPON ONU
Product Description:
PG-GX6212R2102A is designed as HGU (Home Gateway Unit) in different FTTH solutions.The carrier-class FTTH application provides data and video service access .
PG-GX6212R2102A is based on mature and stable,cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
PG-GX6212R2102A adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet
Features :
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode
Support 2.4G&5.8G WIFI and Multiple SSID
Support CATV interface for Video Service and remote control by Major OLT
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
Specifications:
|
Item |
Parameter |
|
PON Interface |
1GE PON optical interface Meet PX20+ standard Upstream 1.244Gbps, downstream 1.244Gbps SC-UPC single-mode fiber(or APC) Split ratio 1:64 Transmission distance 20km |
|
Wavelength |
TX: 1310nm, RX: 1490nm |
|
Optical Interface |
SC/APC Connector |
|
Chip Spec |
RTL9607C DDR3 256MB |
|
Flash |
1Gbit SPI NAND Flash |
|
LAN Interface |
2 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
Wireless |
Compliant with IEEE802.11b/g/n, ac 2.4G Operating frequency:2.400-2.4835GHz 5.8G Operating frequency:5.150-5.825GHz 2.4G 2*2 MIMO, rate up to 300Mbps 5.8G 2*2 MIMO, rate up to 867Mbps 4 external antennas 5dBi Support Multiple SSID |
|
CATV Interface |
RF, WDM, optical power: +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: 78dBuV AGC range: -13~+1dBm MER: ≥32dB@-15dBm |
|
LED |
9 LED, For Status of PWR 、 LOS 、 PON 、 LAN1 、 LAN2 、 2.4G 、 5.8G Worn 、 Normal(CATV) |
|
Push-Button |
2 For Function of Factory Reset and WPS |
|
Operating Condition |
Temperature: 0 ℃~+50 ℃ Humidity: 10% ～90%（ non-condensing） |
|
Storing Condition |
Temperature: -30℃~+60 ℃ Humidity: 10%~90%（ non-condensing） |
|
Power Supply |
DC 12V/1A |
|
Power Consumption |
≤6W |
|
Dimension |
285mm×131mm×45mm（ L×W×H） |
|
Net Weight |
0.35Kg |
