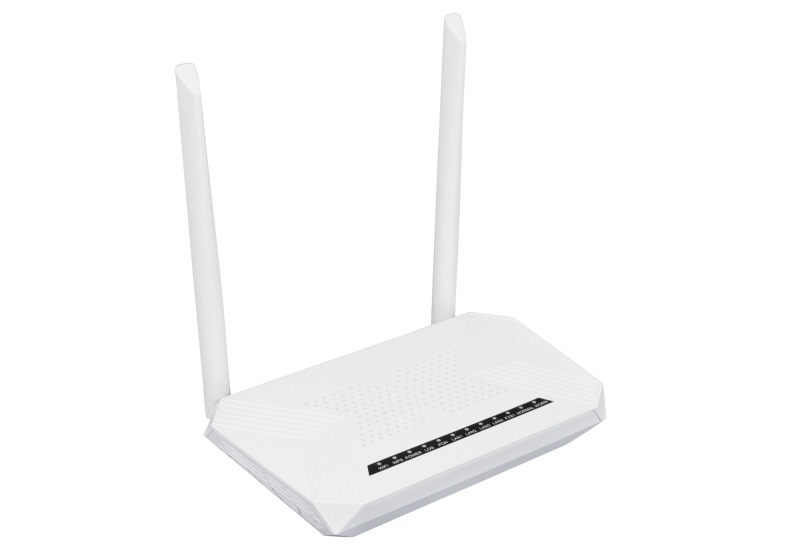

Product Description:
PG-3104XR is designed as HGU (HomeGateway Unit) in different FTTH solutions.The carrier-class FTTH application provides different services access.
PG-3104XR is based on mature and stable,cost-effective XPON technology.
PG-3104XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Features :
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode
Support 2.4G WIFI 802.11 b/g/n and 2*2 MIMO
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and mainte-nance
Specialized design for system breakdown preven- tion to maintain stable system
Specifications:
|
Technical item |
Details |
|
PON Interface |
1 GPON BOB （ Bosa on Board） Input optical power： -8 to -27dbm Output optical power：0~+5dBm Transmission distance: 20KM |
|
Wavelength |
TX: 1310nm, RX: 1490nm |
|
Optical Interface |
SC/APC Connector |
|
Chip Spec |
RTL9603C,DDR2 128MB |
|
Flash |
SPI Nor Flash 16MB /SPI Nand flash 1Gbit |
|

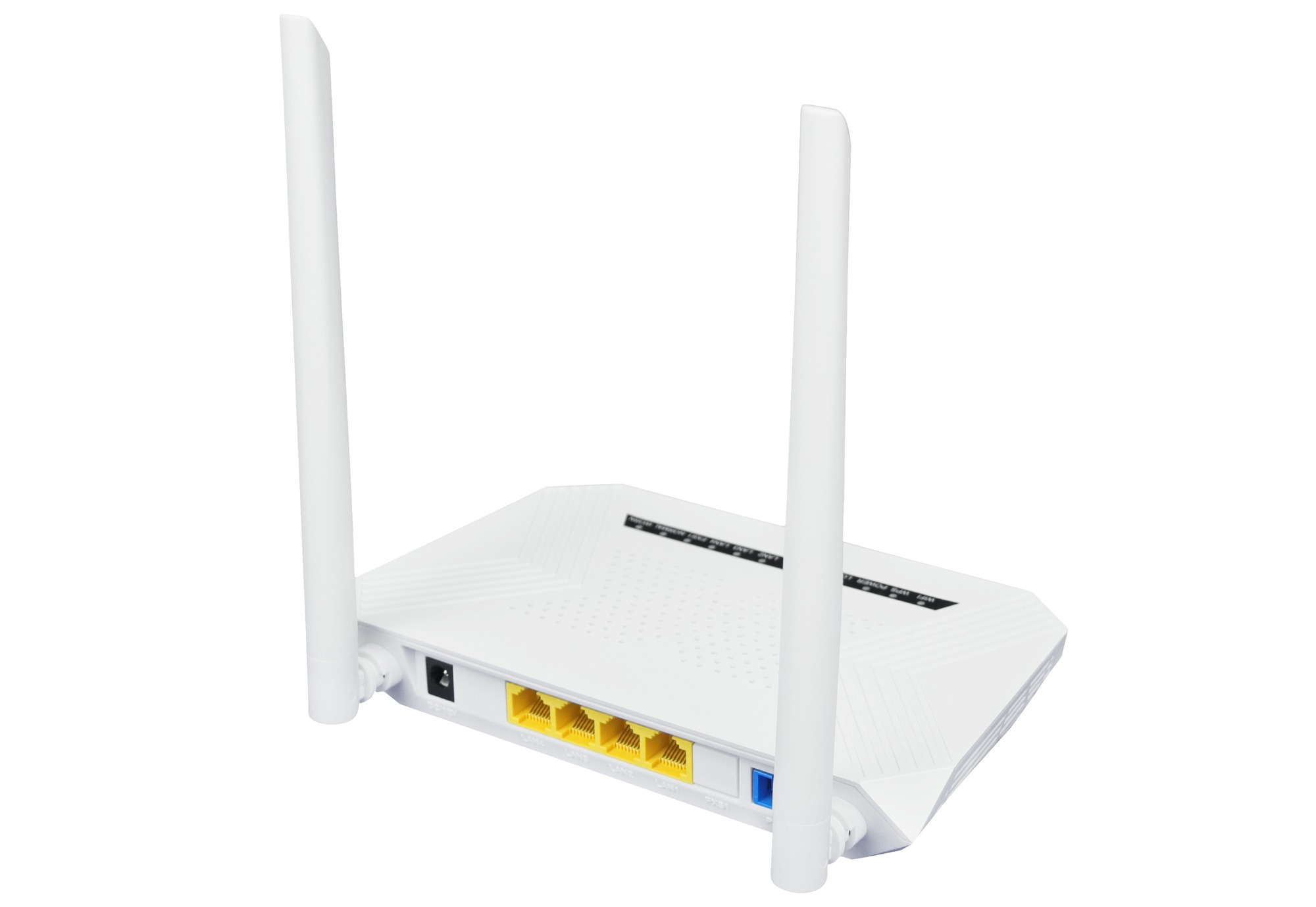

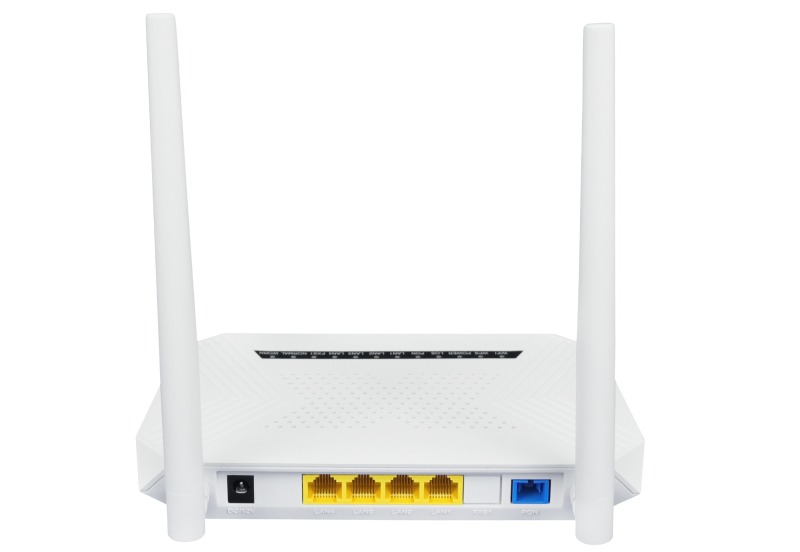

LAN Interface |
1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
Wireless |
Compliant with IEEE802.11b/g/n, Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps, 2T2R,2 external antenna 5dBi, Support: Multiple SSID Channel: Auto Modulation type: DSSS, CCK and OFDM Encoding scheme: BPSK, QPSK, 16QAM and 64QAM |
|
LED |
9 LED, For Status of WIFI、WPS、 PWR、 LOS、 PON、 LAN1~LAN4、 |
|
Push-Button |
3,For Function of Factory Reset, WLAN, WPS |
|
Operating Condition |
Temperature: 0 +50 ℃℃~ Humidity: 10% ～90%（ non-condensing） |
|
Storing Condition |
Temperature: -30℃~+60 ℃ Humidity: 10%~90%（ non-condensing） |
|
Power Supply |
DC 12V/1A |
|
Power Consumption |
≤6W |
|
Dimension |
180mm×107mm×28mm（ L×W×H） |
|
Net Weight |
200g |
